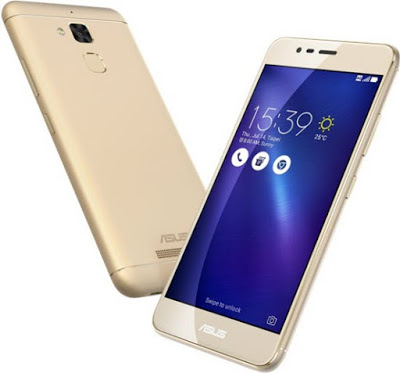

| Local Name | Zenfone 3 Max ZC520TL |
| Technology | GSM / HSPA / LTE |
| 4G Bands | LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 18(800), 19(800), 26(850), 28(700), 38(2600), 41(2500) - Taiwan | LTE band 1(2100), 3(1800), 5(850), 8(900), 40(2300) - India |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 - Global | HSDPA 850 / 900 / 2100 - India |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| Speed | HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps |
| GPRS | Yes |
| EDGE | Yes |
| Announced | 2016, July |
| Status | Available. Released 2016, August |
| Dimensions | 149.5 x 73.7 x 8.6 mm (5.89 x 2.90 x 0.34 in) |
| Weight | 148 g (5.22 oz) |
| Build | Aluminum body |
| SIM | Hybrid Dual SIM (Micro-SIM/Nano-SIM, dual stand-by) |
| Display Type | IPS LCD capacitive touchscreen, 16M colors |
| Screen Size | 5.2 inches, 74.5 cm2 (~67.7% screen-to-body ratio) |
| Resolution | 720 x 1280 pixels, 16:9 ratio (~282 ppi density) |
| OS | Android 6.0.1 (Marshmallow), upgradable to 7.0 (Nougat); ZenUI 3 |
| Chipset | Mediatek MT6737M (28 nm) |
| CPU | Quad-core 1.25 GHz Cortex-A53 |
| GPU | Mali-T720MP2 |
| Card Slot | microSD, up to 32 GB (uses SIM 2 slot) |
| Internal Memory | 32 GB, 3 GB RAM or 16 GB, 2 GB RAM |
| Camera Features | LED flash, panorama, HDR |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| Sound | Active noise cancellation with dedicated mic |
| WLAN | Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot |
| Bluetooth | 4.0, A2DP, EDR |
| GPS | Yes, with A-GPS, GLONASS, BDS |
| Radio | FM radio |
| USB | microUSB 2.0, USB On-The-Go |
| Sensors | Fingerprint (rear-mounted), accelerometer, proximity, compass |
| Battery | Non-removable Li-Po 4130 mAh battery |
| Stand By | Up to 720 h (3G) |
| Talk Time | Up to 20 h (3G) |
| Music Play | Up to 87 h |
| Colors | Titanium Grey, Glacier Silver, Sand Gold |
