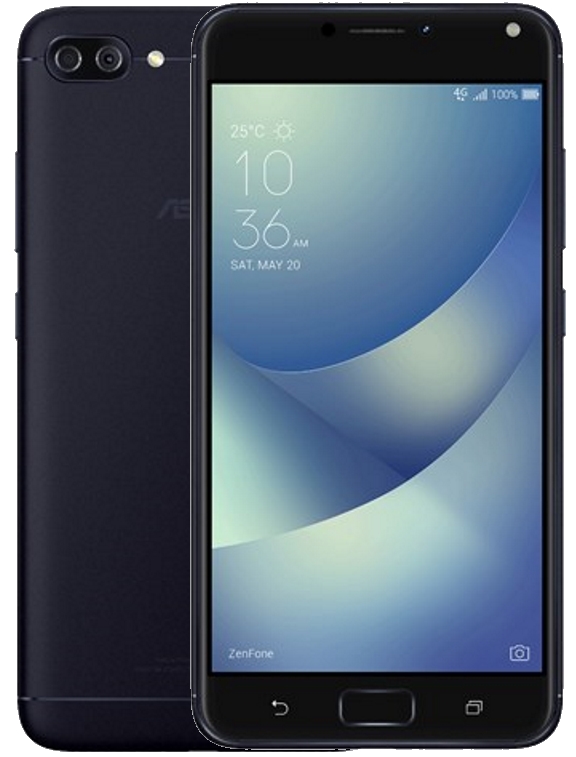

| Local Name | Zenfone 4 Max ZC554KL |
| Technology | GSM / HSPA / LTE |
| 4G Bands | 1, 3, 5, 7, 8, 20, 40 | 1, 2, 3, 4, 5, 7, 8, 17, 18, 19, 26, 28, 38, 41 - USA, Canada |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 | HSDPA 800 / 850 / 900 / 1700(AWS) / 1900 / 2100 - USA, Canada |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| Speed | HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps |
| Announced | 2017, July |
| Status | Available. Released 2017, September |
| Dimensions | 154 x 76.9 x 8.9 mm (6.06 x 3.03 x 0.35 in) |
| Weight | 181 g (6.38 oz) |
| Build | Glass front (Gorilla Glass), aluminum back, aluminum frame |
| SIM | Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | Li-Po 5000 mAh, non-removable |
| Screen Size | 5.5 inches, 83.4 cm2 (~70.4% screen-to-body ratio) |
| Resolution | 720 x 1280 pixels, 16:9 ratio (~267 ppi density) |
| Protection | Corning Gorilla Glass (unspecified version) |
| OS | Android 7 (Nougat), ZenUI 4 |
| Chipset | Qualcomm MSM8937 Snapdragon 430 (28 nm) |
| CPU | Octa-core 1.4 GHz Cortex-A53 |
| GPU | Adreno 505 |
| Card Slot | microSDXC (dedicated slot) |
| Internal Memory | 32GB 3GB RAM | eMMC 5.1 |
| Camera Features | LED flash |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| WLAN | Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot |
| Bluetooth | 4.1, A2DP, LE |
| GPS | Yes, with A-GPS, GLONASS, BDS |
| NFC | No |
| Radio | FM radio |
| USB | microUSB 2.0, USB On-The-Go |
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass |
| Colors | Titanium Gray, Rose Pink, Sand Gold, Deepsea Black |
