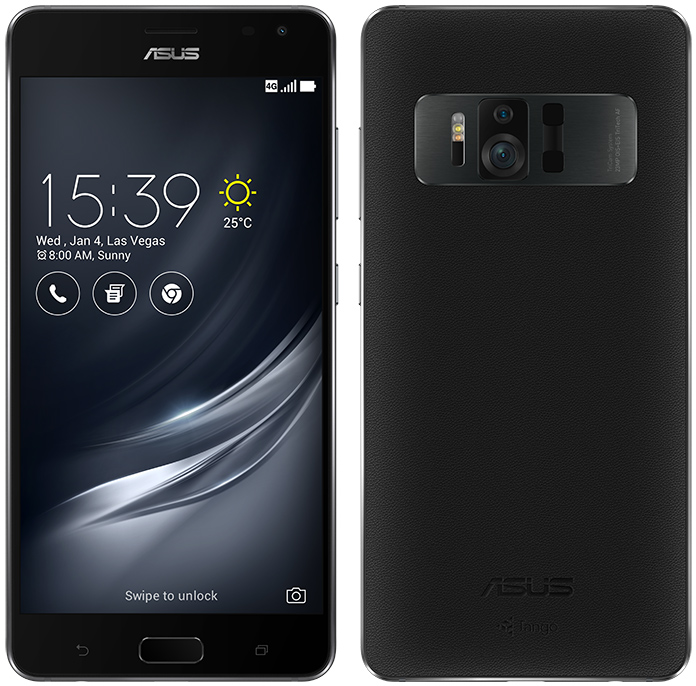

| Local Name | Zenfone AR ZS571KL |
| Additional Information | Versions: ZS571KL (Global); V570KL (Verizon) |
| Technology | GSM / HSPA / LTE |
| 4G Bands | 1, 3, 5, 7, 8, 18, 19, 20, 26, 28, 38, 40, 41 - Global | 1, 2, 3, 4, 5, 7, 12, 13, 20, 29 - North America |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 - Global | HSDPA 850 / 1700(AWS) / 1900 / 2100 - North America |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (3CA) Cat12 600/75 Mbps |
| Announced | 2017, January |
| Status | Available. Released 2017, June |
| Dimensions | 158.7 x 77.7 x 9 mm (6.25 x 3.06 x 0.35 in) |
| Weight | 170 g (6.00 oz) |
| SIM | Hybrid Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | Super AMOLED capacitive touchscreen, 16M colors |
| Screen Size | 5.7 inches, 89.6 cm2 (~72.6% screen-to-body ratio) |
| Resolution | 1440 x 2560 pixels, 16:9 ratio (~515 ppi density) |
| Protection | Corning Gorilla Glass 4 |
| OS | Android 7 (Nougat); ZenUI 3 |
| Chipset | Qualcomm MSM8996 Snapdragon 821 (14 nm) |
| CPU | Quad-core (2x2.35 GHz Kryo & 2x1.6 GHz Kryo) |
| GPU | Adreno 530 |
| Card Slot | microSDXC (uses shared SIM slot) |
| Internal Memory | 64GB 6GB RAM, 128GB 6GB RAM, 256GB 8GB RAM |
| Camera Features | Dual-LED dual-tone flash, HDR, panorama |
| Video | 1080p@30fps |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| Sound | 24-bit/192kHz audio |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot |
| Bluetooth | 4.2, A2DP, LE |
| GPS | Yes, with A-GPS, GLONASS, BDS |
| Radio | FM radio |
| USB | 2.0, Type-C 1.0 reversible connector, USB On-The-Go |
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass, barometer |
| Features Summary | Project Tango |
| Battery | Non-removable Li-Ion 3300 mAh battery |
| Colors | Black |
