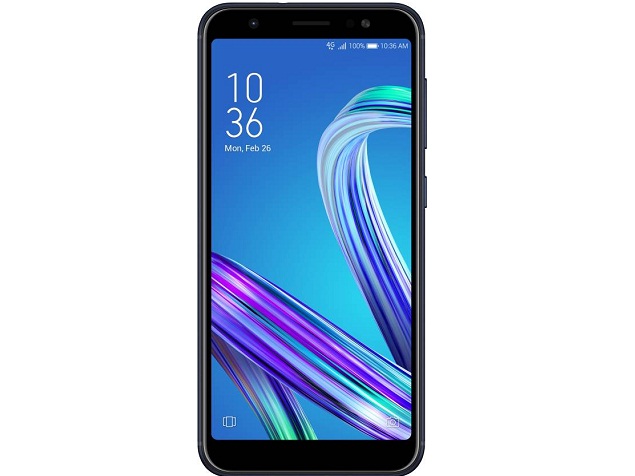

| Local Name | Zenfone Max (M1) ZB556KL |
| Technology | GSM / HSPA / LTE |
| 4G Bands | 1, 2, 3, 5, 7, 8, 20, 40 - A version | 1, 3, 5, 8, 40 - B version | 1, 2, 3, 4, 5, 7, 8, 12, 17, 28 - D version | 1, 3, 5, 7, 8, 18, 19, 26, 28, 38, 40 - C version |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 - A version | HSDPA 850 / 900 / 2100 - B version | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - D version | HSDPA 800 / 850 / 900 / 2100 - C version |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A Cat4 150/50 Mbps |
| Announced | 2018, October |
| Status | Available. Released 2018, October |
| Dimensions | 147.3 x 70.9 x 8.7 mm (5.80 x 2.79 x 0.34 in) |
| Weight | 150 g (5.29 oz) |
| Build | Glass front, plastic back, plastic frame |
| SIM | Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | Li-Po 4000 mAh, non-removable |
| Screen Size | 5.45 inches, 86.5 cm2 (~82.8% screen-to-body ratio) |
| Resolution | 720 x 1440 pixels, 16:10 ratio (~247 ppi density) |
| OS | Android 8 (Oreo), ZenUI 5 |
| Chipset | Qualcomm MSM8937 Snapdragon 430 (28 nm) |
| CPU | Octa-core 1.4 GHz Cortex-A53 |
| GPU | Adreno 505 |
| Card Slot | microSDXC (dedicated slot) |
| Internal Memory | 32GB 3GB RAM | eMMC 5.1 |
| Camera Features | LED flash |
| Video | 1080p@30fps |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| WLAN | Wi-Fi 802.11 b/g/n, Wi-Fi Direct |
| Bluetooth | 4.0, A2DP, LE |
| NFC | No |
| Radio | FM radio |
| USB | microUSB 2.0, OTG |
| Sensors | Fingerprint (rear-mounted), accelerometer, proximity, compass |
| Features Summary | Photo/video editor |
| Colors | Deepsea Black, Sunlight Gold |
