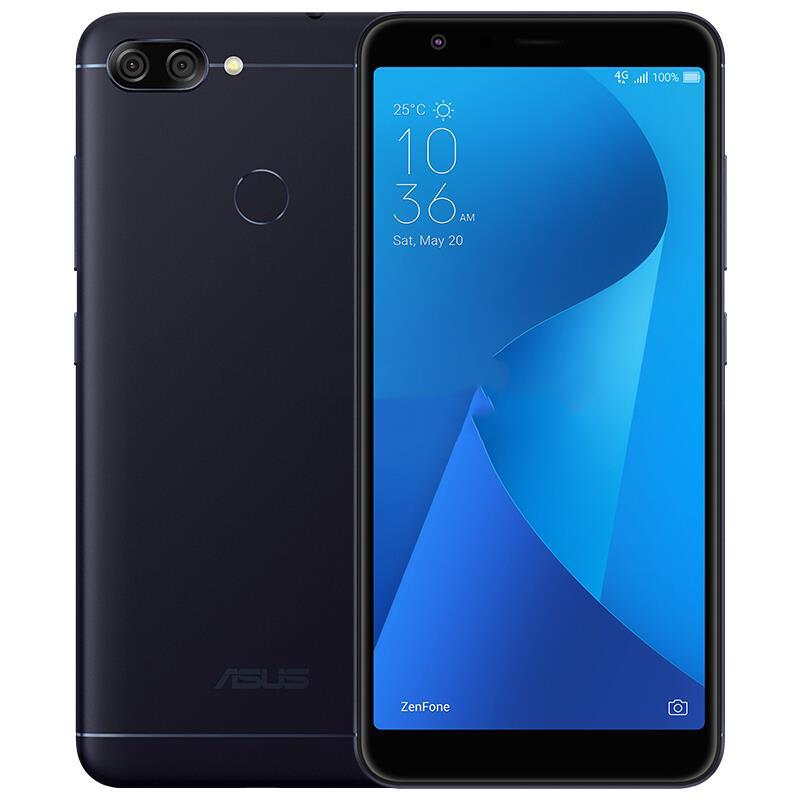

| Local Name | Zenfone Max Plus (M1) ZB570TL |
| Technology | GSM / CDMA / HSPA / LTE |
| 4G Bands | 1, 2, 3, 5, 7, 8, 20, 40 - Global | 1, 3, 5, 7, 8, 18, 19, 26, 28, 38, 41 - Taiwan | 2, 3, 4, 5, 7, 12, 17, 28 - USA, LATAM | 1, 3, 5, 7, 8, 34, 38, 39, 40, 41 - China |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 - Global, China | HSDPA 850 / 900 / 2100 / 800 - Taiwan | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 - USA, LATAM |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 | CDMA 800 & TD-SCDMA - China |
| Speed | HSPA 42.2/5.76 Mbps, LTE Cat4 150/50 Mbps |
| Announced | 2017, November |
| Status | Available. Released 2017, December |
| Dimensions | 152.6 x 73 x 8.8 mm (6.01 x 2.87 x 0.35 in) |
| Weight | 160 g (5.64 oz) |
| Build | Glass front, aluminum back, aluminum frame |
| SIM | Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | Li-Po 4130 mAh, non-removable |
| Screen Size | 5.7 inches, 83.8 cm2 (~75.3% screen-to-body ratio) |
| Resolution | 1080 x 2160 pixels, 18:9 ratio (~424 ppi density) |
| OS | Android 7 (Nougat), ZenUI 4 |
| Chipset | Mediatek MT6750T (28 nm) |
| CPU | Octa-core (4x1.5 GHz Cortex-A53 & 4x1.0 GHz Cortex-A53) |
| GPU | Mali-T860MP2 |
| Card Slot | microSDXC (dedicated slot) |
| Internal Memory | 16GB 2GB RAM, 32GB 3GB RAM, 64GB 4GB RAM | eMMC 5.1 |
| Camera Features | LED flash, HDR, panorama |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| WLAN | Wi-Fi 802.11 b/g/n, Wi-Fi Direct |
| Bluetooth | 4.0, A2DP, LE |
| NFC | No |
| Radio | FM radio |
| USB | microUSB 2.0, OTG |
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
| Colors | Sunlight Gold, Azure Silver, Deepsea Black |
