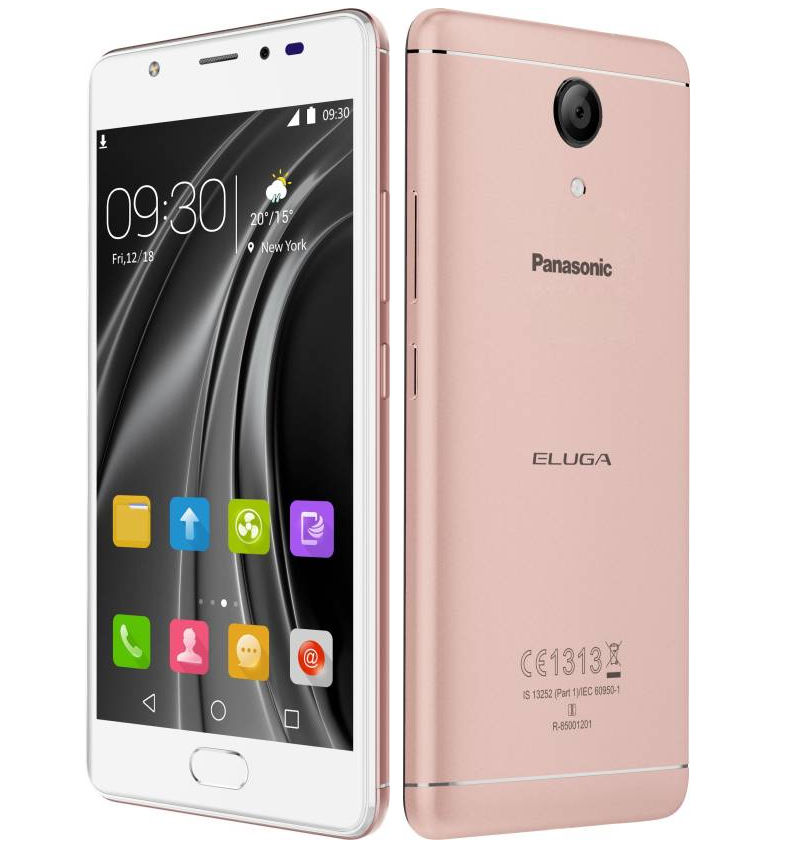

| Local Name | Eluga Ray Max |
| Technology | GSM / HSPA / LTE |
| 4G Bands | LTE band 3(1800), 5(850), 40(2300) |
| 3G Bands | HSDPA 900 / 2100 |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 |
| Speed | HSPA, LTE |
| GPRS | Yes |
| EDGE | Yes |
| Announced | 2017, April |
| Status | Available. Released 2017, April |
| Dimensions | 148 x 73 x 9.5 mm (5.83 x 2.87 x 0.37 in) |
| Weight | 165 g (5.82 oz) |
| SIM | Dual SIM |
| Display Type | IPS LCD capacitive touchscreen, 16M colors |
| Screen Size | 5.2 inches, 74.5 cm2 (~69.0% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels, 16:9 ratio (~424 ppi density) |
| Mulitouch | Yes |
| Protection | Corning Gorilla Glass 3 |
| OS | Android 6.0 (Marshmallow) |
| Chipset | Qualcomm MSM8937 Snapdragon 430 |
| CPU | Octa-core 1.4 GHz Cortex-A53 |
| GPU | Adreno 505 |
| Card Slot | microSD, up to 256 GB |
| Internal Memory | 32/64 GB, 4 GB RAM |
| Primary Camera | 16 MP, autofocus, LED flash |
| Camera Features | Geo-tagging, touch focus, face detection, panorama |
| Video | 1080p@30fps |
| Secondary Camera | 8 MP, LED flash |
| Alert Types | Vibration; MP3, WAV ringtones |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| Sound | Active noise cancellation with dedicated mic |
| WLAN | Wi-Fi 802.11 b/g/n, Wi-Fi Direct, hotspot |
| Bluetooth | 4.0, A2DP |
| GPS | Yes, with A-GPS |
| Infrared Port | Yes |
| Radio | FM radio with RDS; recording |
| USB | microUSB 2.0, USB On-The-Go |
| Sensors | Fingerprint (front-mounted), accelerometer, proximity, compass |
| Messaging | SMS(threaded view), MMS, Email, Push Email, IM |
| Browser | HTML5 |
| Features Summary | Fast battery charging (Quick Charge 3.0), MP4/H.264 player, MP3/WAV/eAAC player, Photo/video editor, Document viewer |
| Battery | Non-removable Li-Ion 3000 mAh battery |
| Colors | Rose Gold, Space Grey, Gold |
