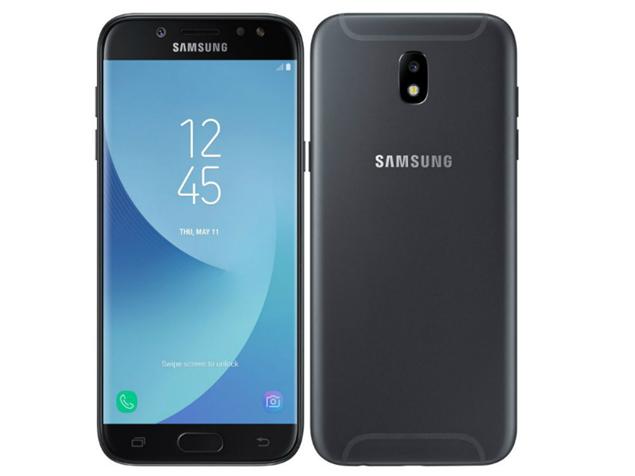

| Local Name | Galaxy J5 (2017) |
| Additional Information | Versions: J530F/DS (Global Dual-SIM); J530Y/DS (Malaysia); J530FM/DS (UAE) Also known as Samsung Galaxy J5 Pro (2017) with 32GB/3GB RAM; Samsung Galaxy J5 (2017) Duos with dual-SIM card slots |
| Technology | GSM / HSPA / LTE |
| 4G Bands | LTE band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 20(800), 40(2300) |
| 3G Bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (dual-SIM model only) |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (2CA) Cat6 300/50 Mbps |
| Announced | 2017, June |
| Status | Available. Released 2017, June |
| Dimensions | 146.2 x 71.3 x 8 mm (5.76 x 2.81 x 0.31 in) |
| Weight | 160 g (5.64 oz) |
| Build | Front glass, aluminum body |
| SIM | Single SIM (Nano-SIM) or Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | Super AMOLED capacitive touchscreen, 16M colors |
| Screen Size | 5.2 inches, 74.5 cm2 (~71.5% screen-to-body ratio) |
| Resolution | 720 x 1280 pixels, 16:9 ratio (~282 ppi density) |
| OS | Android 7.0 (Nougat), upgradable to Android 9.0 (Pie); One UI |
| Chipset | Exynos 7870 Octa (14 nm) |
| CPU | Octa-core 1.6 GHz Cortex-A53 |
| GPU | Mali-T830 MP1 |
| Card Slot | microSD, up to 256 GB (dedicated slot) |
| Internal Memory | 16GB 2GB RAM (Global), 32GB 2GB RAM (LATAM, SEA), 32GB 3GB RAM (Pro) |
| Camera Features | LED flash |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, Wi-Fi Direct, hotspot |
| Bluetooth | 4.1, A2DP |
| GPS | Yes, with A-GPS, GLONASS, BDS |
| NFC | Yes |
| Radio | FM radio |
| USB | microUSB 2.0 |
| Sensors | Fingerprint (front-mounted), accelerometer, gyro, proximity, compass |
| Features Summary | ANT+ |
| Battery | Non-removable Li-Ion 3000 mAh battery |
| Talk Time | Up to 21 h (3G) |
| Music Play | Up to 83 h |
| Colors | Blue, Pink, Gold, Black |
| SAR EU | 0.35 W/kg (head) 1.36 W/kg (body) |
