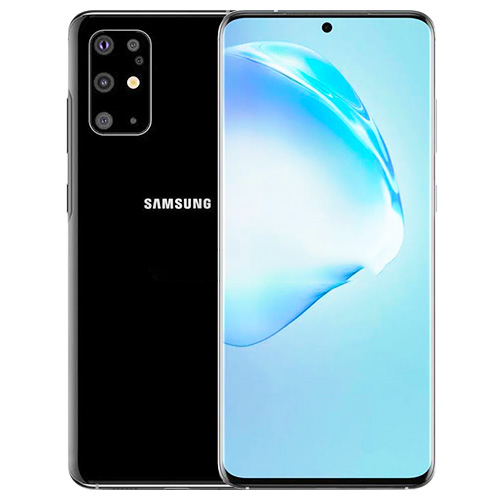

| Local Name | Galaxy S20 Ultra 5G |
| Technology | GSM / CDMA / HSPA / EVDO / LTE / 5G |
| 4G Bands | LTE band 1(2100), 2(1900), 3(1800), 4(1700/2100), 5(850), 7(2600), 8(900), 12(700), 13(700), 14(700), 18(800), 19(800), 20(800), 25(1900), 26(850), 28(700), 29(700), 30(2300), 38(2600), 39(1900), 40(2300), 41(2500), 46(5200), 48, 66(1700/2100), 71(600) - SM-G988U |
| 3G Bands | HSDPA 850 / 900 / 1700(AWS) / 1900 / 2100 | CDMA2000 1xEV-DO |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 (Dual SIM model only) | CDMA 800 / 1900 & TD-SCDMA |
| Speed | HSPA 42.2/5.76 Mbps, LTE-A (7CA) Cat20 2000/200 Mbps; 5G (5+ Gbps DL) |
| Announced | 2020, February 11 |
| Status | Available. Released 2020, March 6 |
| Dimensions | 166.9 x 76 x 8.8 mm (6.57 x 2.99 x 0.35 in) |
| Weight | 222 g (7.83 oz) |
| Build | Glass front (Gorilla Glass 6), glass back (Gorilla Glass 6), aluminum frame |
| SIM | Single SIM (Nano-SIM and/or eSIM) or Hybrid Dual SIM (Nano-SIM, dual stand-by) |
| Body | Samsung Pay (Visa, MasterCard certified) IP68 dust/water resistant (up to 1.5m for 30 mins) |
| Display Type | Dynamic AMOLED 2X capacitive touchscreen, 16M colors |
| Screen Size | 6.9 inches, 114.0 cm2 (~89.9% screen-to-body ratio) |
| Resolution | 1440 x 3200 pixels, 20:9 ratio (~511 ppi density) |
| Protection | Corning Gorilla Glass 6 | HDR10+ Always-on display 120Hz@FHD, 60Hz@QHD |
| OS | Android 10.0; One UI 2 |
| Chipset | Exynos 990 (7 nm+) - GlobalQualcomm SM8250 Snapdragon 865 (7 nm+) - USA |
| CPU | Octa-core (2x2.73 GHz Mongoose M5 & 2x2.50 GHz Cortex-A76 & 4x2.0 GHz Cortex-A55) - GlobalOcta-core (1x2.84 GHz Kryo 585 & 3x2.42 GHz Kryo 585 & 4x1.8 GHz Kryo 585) - USA |
| GPU | Mali-G77 MP11 - GlobalAdreno 650 - USA |
| Card Slot | microSDXC (uses shared SIM slot) |
| Internal Memory | 128GB 12GB RAM, 256GB 12GB RAM, 512GB 16GB RAM | UFS 3.0 |
| Camera Features | Dual video call, Auto-HDR |
| Video | 2160p@30/60fps, 1080p@30fps |
| Loudspeaker | Yes, with stereo speakers |
| 3.5mm Jack | No |
| Sound | 32-bit/384kHz audio Tuned by AKG |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac/ax, dual-band, Wi-Fi Direct, hotspot |
| Bluetooth | 5.0, A2DP, LE |
| GPS | Yes, with A-GPS, GLONASS, BDS, GALILEO |
| NFC | Yes |
| Radio | FM radio (USA & Canada only) |
| USB | 3.2, Type-C 1.0 reversible connector, USB On-The-Go |
| Sensors | Fingerprint (under display, ultrasonic), accelerometer, gyro, proximity, compass, barometer |
| Features Summary | ANT+, Bixby natural language commands and dictation, Samsung DeX (desktop experience support) |
| Battery | Non-removable Li-Po 5000 mAh battery |
| Colors | Cosmic Grey, Cosmic Black |
| SAR EU | 0.32 W/kg (head) 1.56 W/kg (body) |
