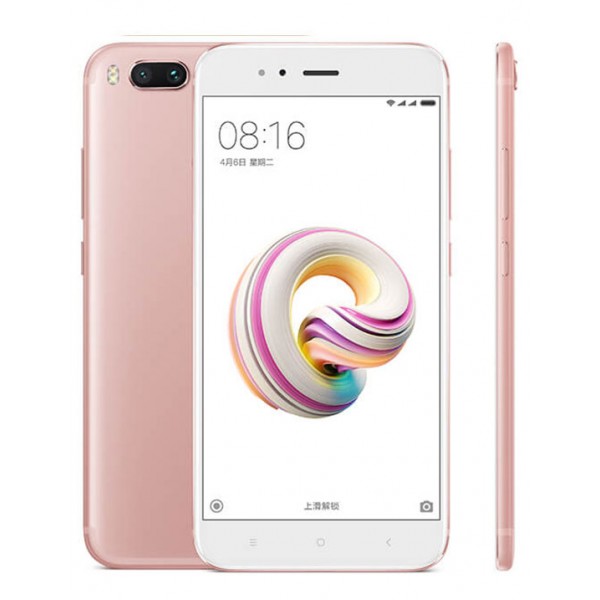

| Local Name | Mi 5X |
| Technology | GSM / CDMA / HSPA / LTE |
| 4G Bands | LTE band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500) |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 | CDMA 800 & TD-SCDMA |
| Speed | HSPA, LTE |
| GPRS | Yes |
| EDGE | Yes |
| Announced | 2017, July |
| Status | Available. Released 2017, August |
| Dimensions | 155.4 x 75.8 x 7.3 mm (6.12 x 2.98 x 0.29 in) |
| Weight | 165 g (5.82 oz) |
| SIM | Hybrid Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | LTPS IPS LCD capacitive touchscreen, 16M colors |
| Screen Size | 5.5 inches (~70.1% screen-to-body ratio) |
| Resolution | 1080 x 1920 pixels (~403 ppi pixel density) |
| Mulitouch | Yes | MIUI 8.5 |
| OS | Android 7.1.1 (Nougat) |
| Chipset | Qualcomm MSM8953 Snapdragon 625 |
| CPU | Octa-core 2.0 GHz Cortex-A53 |
| GPU | Adreno 506 |
| Card Slot | microSD, up to 128 GB (uses SIM 2 slot) |
| Internal Memory | 32/64 GB, 4 GB RAM |
| Primary Camera | Dual 12 MP (26mm, f/2.2; 50mm, f/2.6), phase detection autofocus, 2x optical zoom, dual-LED (dual tone) flash |
| Camera Features | 1.25 µm/ 1.0 µm pixel size, geo-tagging, touch focus, face detection, HDR, panorama |
| Video | 2160p@30fps, 720p@120fps |
| Secondary Camera | 5 MP, 1080p |
| Alert Types | Vibration; MP3, WAV ringtones |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| Sound | Active noise cancellation with dedicated mic |
| WLAN | Wi-Fi 802.11 a/b/g/n/ac, dual-band, WiFi Direct, hotspot |
| Bluetooth | 4.2, A2DP, LE |
| GPS | Yes, with A-GPS, GLONASS, BDS |
| Infrared Port | Yes |
| Radio | FM radio |
| USB | 2.0, Type-C 1.0 reversible connector |
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
| Messaging | SMS(threaded view), MMS, Email, Push Mail, IM |
| Browser | HTML5 |
| Java | No |
| Features Summary | Fast battery charging, Xvid/MP4/H.264 player, MP3/WAV/eAAC+/FLAC player, Photo/video editor, Document viewer |
| Battery | Non-removable Li-Ion 3080 mAh battery |
| Colors | Black, Gold, Rose Gold |
