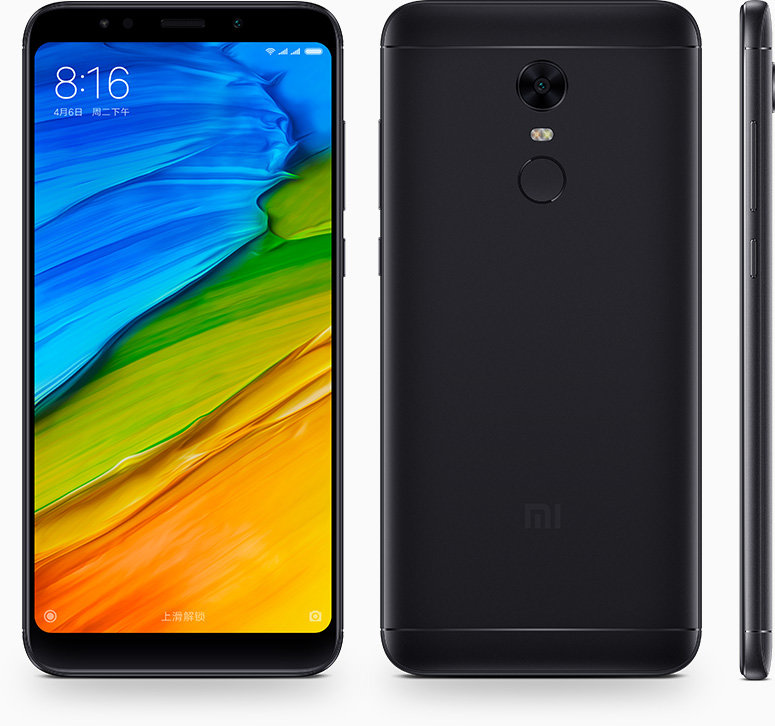

| Local Name | Redmi 5 Plus |
| Additional Information | For China |
| Technology | GSM / CDMA / HSPA / LTE |
| 4G Bands | LTE band 1(2100), 3(1800), 5(850), 7(2600), 8(900), 34(2000), 38(2600), 39(1900), 40(2300), 41(2500) |
| 3G Bands | HSDPA 850 / 900 / 1900 / 2100 |
| 2G Bands | GSM 850 / 900 / 1800 / 1900 - SIM 1 & SIM 2 | CDMA 800 & TD-SCDMA |
| Speed | HSPA, LTE |
| GPRS | Yes |
| EDGE | Yes |
| Announced | 2017, December |
| Status | Available. Released 2017, December |
| Dimensions | 158.5 x 75.5 x 8.1 mm (6.24 x 2.97 x 0.32 in) |
| Weight | 180 g (6.35 oz) |
| Build | Front glass, aluminum frame & back, plastic ends |
| SIM | Hybrid Dual SIM (Nano-SIM, dual stand-by) |
| Display Type | IPS LCD capacitive touchscreen, 16M colors |
| Screen Size | 5.99 inches, 92.6 cm2 (~77.4% screen-to-body ratio) |
| Resolution | 1080 x 2160 pixels, 18:9 ratio (~403 ppi density) |
| Mulitouch | Yes |
| Protection | Corning Gorilla Glass (unspecified version) | MIUI 9 |
| OS | Android 7.1.2 (Nougat) |
| Chipset | Qualcomm MSM8953 Snapdragon 625 |
| CPU | Octa-core 2.0 GHz Cortex-A53 |
| GPU | Adreno 506 |
| Card Slot | microSD, up to 128 GB (uses SIM 2 slot) |
| Internal Memory | 64 GB, 4 GB RAM or 32 GB, 3 GB RAM |
| Primary Camera | 12 MP (f/2.2, 1.25 μm), phase detection autofocus, dual-LED dual-tone flash |
| Camera Features | Geo-tagging, touch focus, face/smile detection, HDR, panorama |
| Video | 2160p@30fps, 1080p@30fps |
| Secondary Camera | 5 MP, 1080p |
| Alert Types | Vibration; MP3, WAV ringtones |
| Loudspeaker | Yes |
| 3.5mm Jack | Yes |
| Sound | Active noise cancellation with dedicated mic |
| WLAN | Wi-Fi 802.11 a/b/g/n, Wi-Fi Direct, hotspot |
| Bluetooth | 4.2, A2DP, LE |
| GPS | Yes, with A-GPS, GLONASS, BDS |
| Infrared Port | Yes |
| Radio | FM radio |
| USB | microUSB 2.0 |
| Sensors | Fingerprint (rear-mounted), accelerometer, gyro, proximity, compass |
| Messaging | SMS(threaded view), MMS, Email, Push Mail, IM |
| Browser | HTML5 |
| Features Summary | Fast battery charging 5V/2A, DivX/Xvid/MP4/H.265 player, MP3/WAV/eAAC+/FLAC player, Photo/video editor, Document viewer |
| Battery | Non-removable Li-Po 4000 mAh battery |
| Colors | Black, Gold, Light Blue, Rose Gold |
